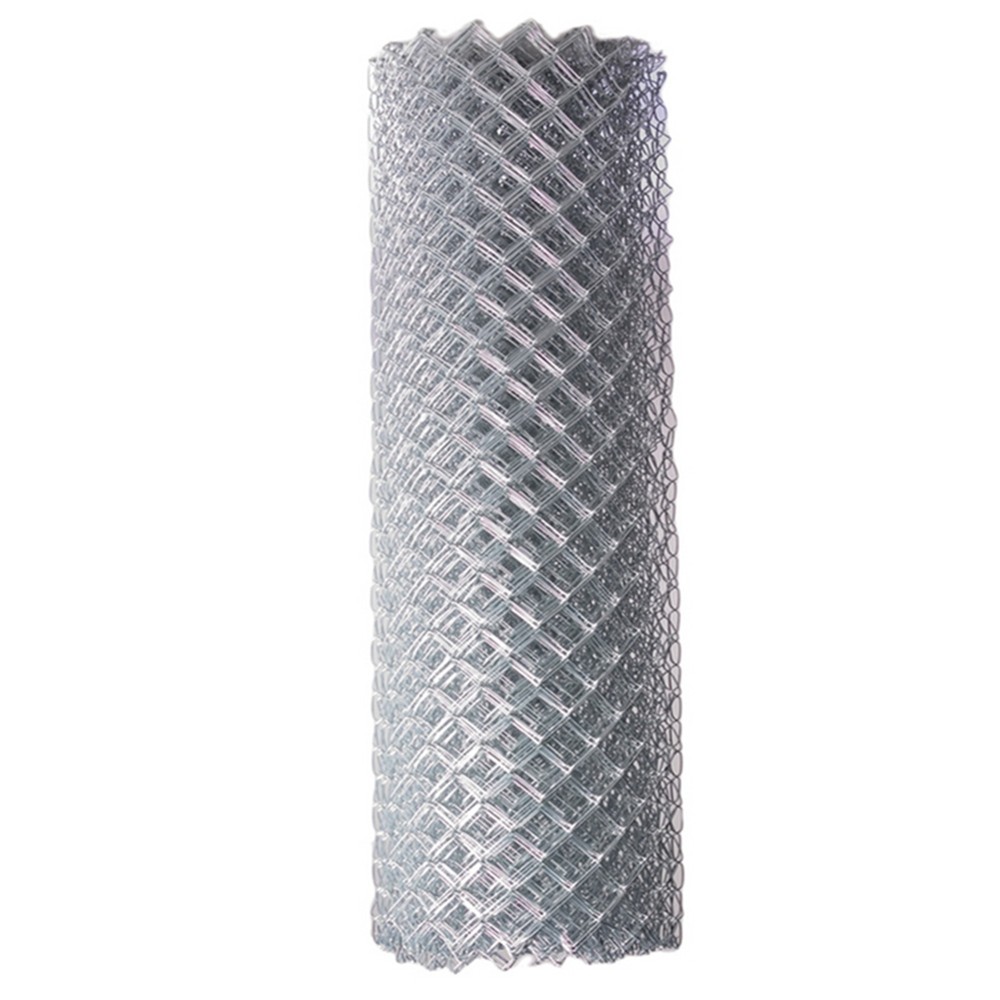

Chain-Link Diamond Mesh

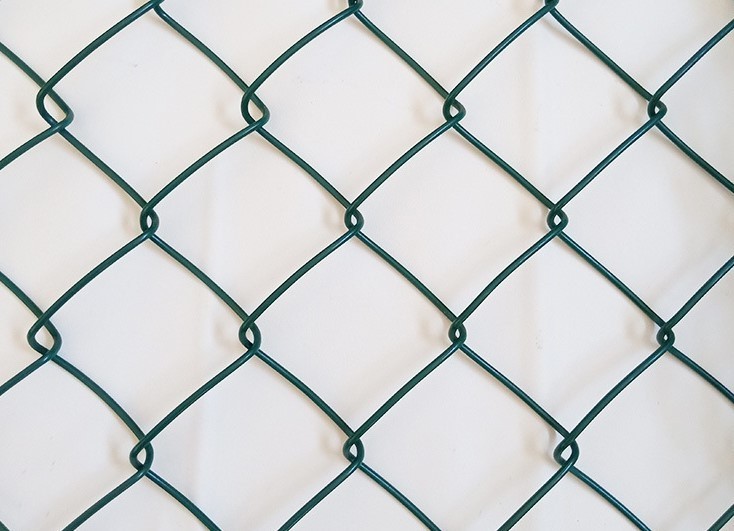

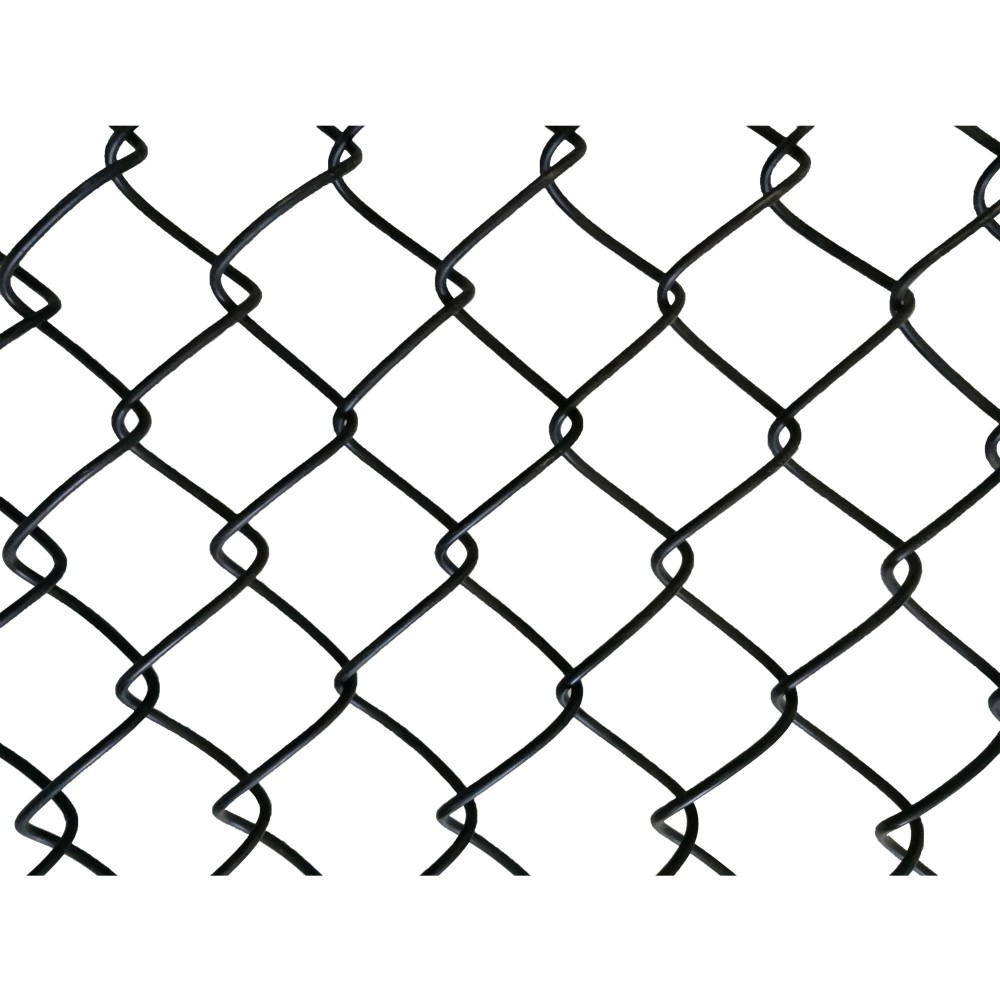

Chain-link fencing (also known as diamond mesh) is a type of elastic woven mesh produced through an interlocking process. It is primarily made from low-carbon steel wire, galvanized wire, or PVC-coated wire, forming a mesh structure after undergoing anti-corrosion treatments such as dip coating, spray coating, or plastic encapsulation. The mesh features a uniform diamond-patterned grid, offering elastic cushioning and impact resistance. Common mesh sizes range from 45mm×45mm to 70mm×70mm (with a minimum weave size of 6mm), wire diameters range from 1.2mm to 5.0mm, and maximum panel dimensions can reach 3000mm×4000mm. Posts typically consist of 75mm diameter steel pipes, utilizing clamp or "tomahawk-style" connectors for weld-free assembly.

Wire diameter: 1.2mm – 5.0mm; common sizes: 2.0mm, 2.2mm, 2.5mm, 3.0mm

Mesh size (diamond diagonal): 25mm (1"), 40mm (1.5"), 50mm (2"), 60mm (2.4"), 65mm (2.5"), 76mm (3"), 100mm (4"); 50mm (2 inches) is the most frequently purchased size for overseas markets.

Width: 0.5m – 4m; common sizes: 1.0m, 1.2m, 1.5m, 1.8m, 2.0m

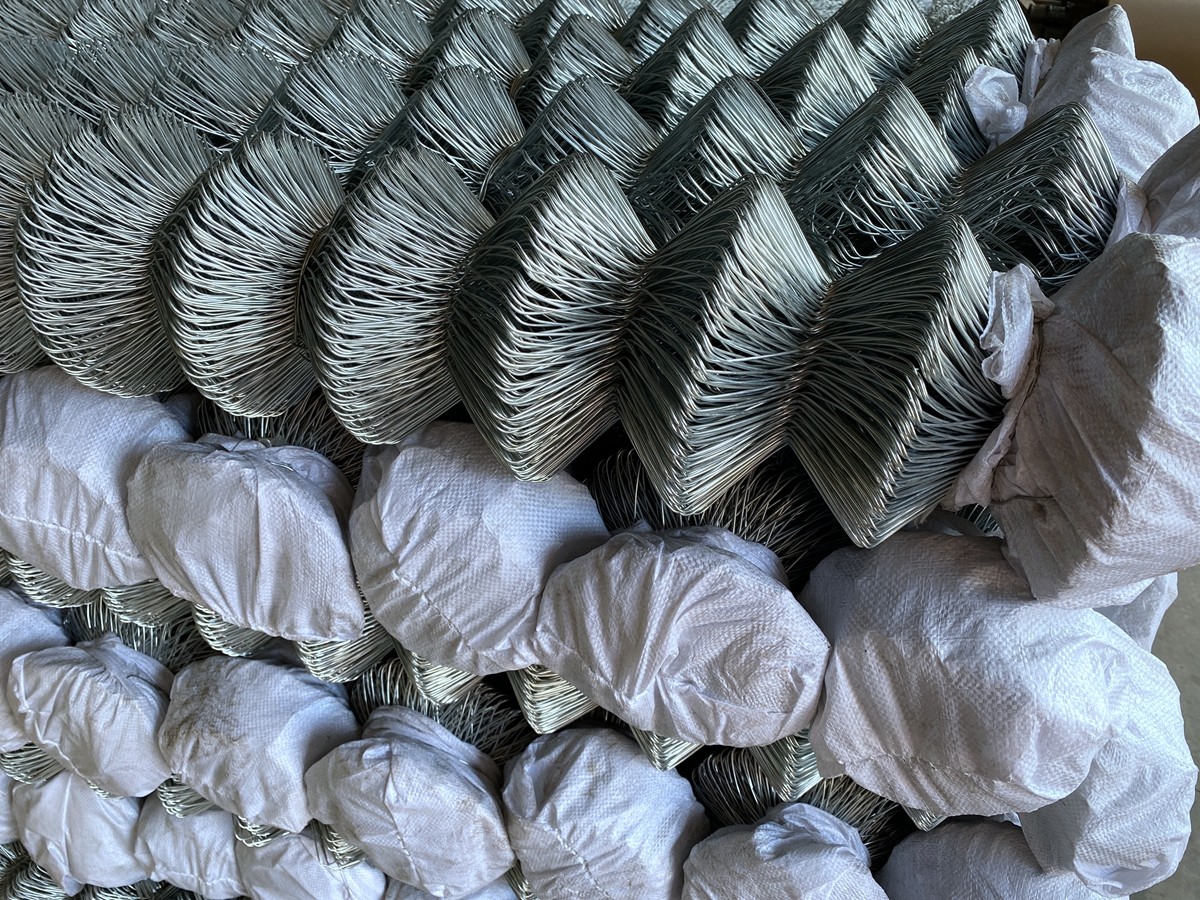

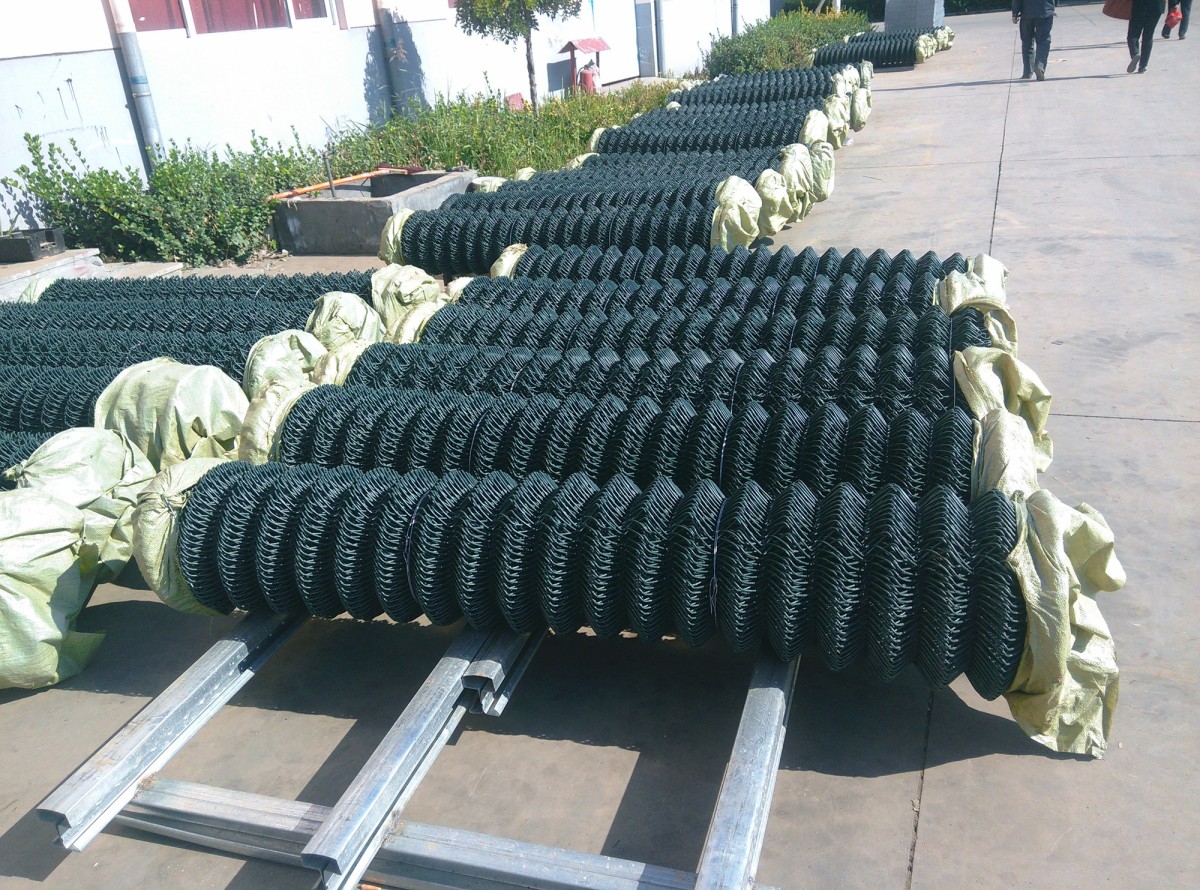

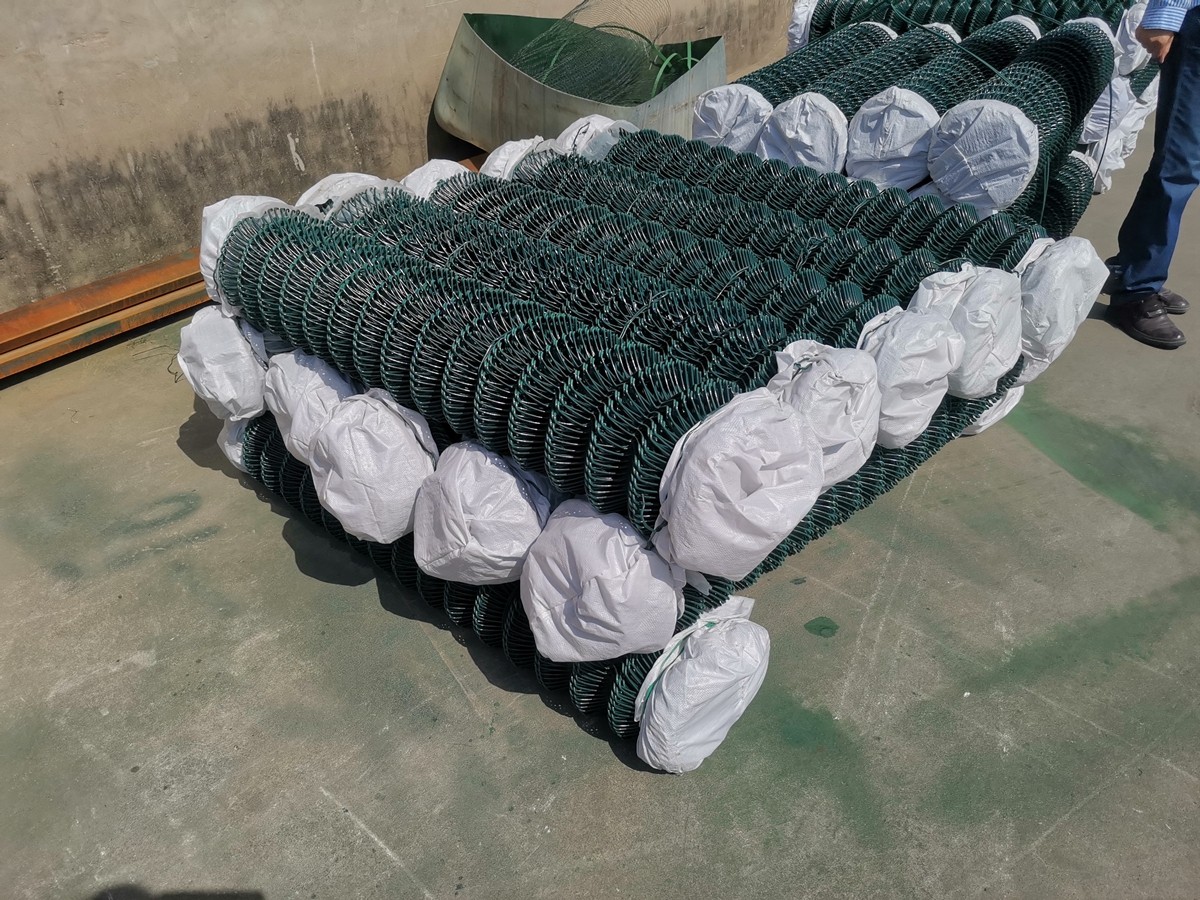

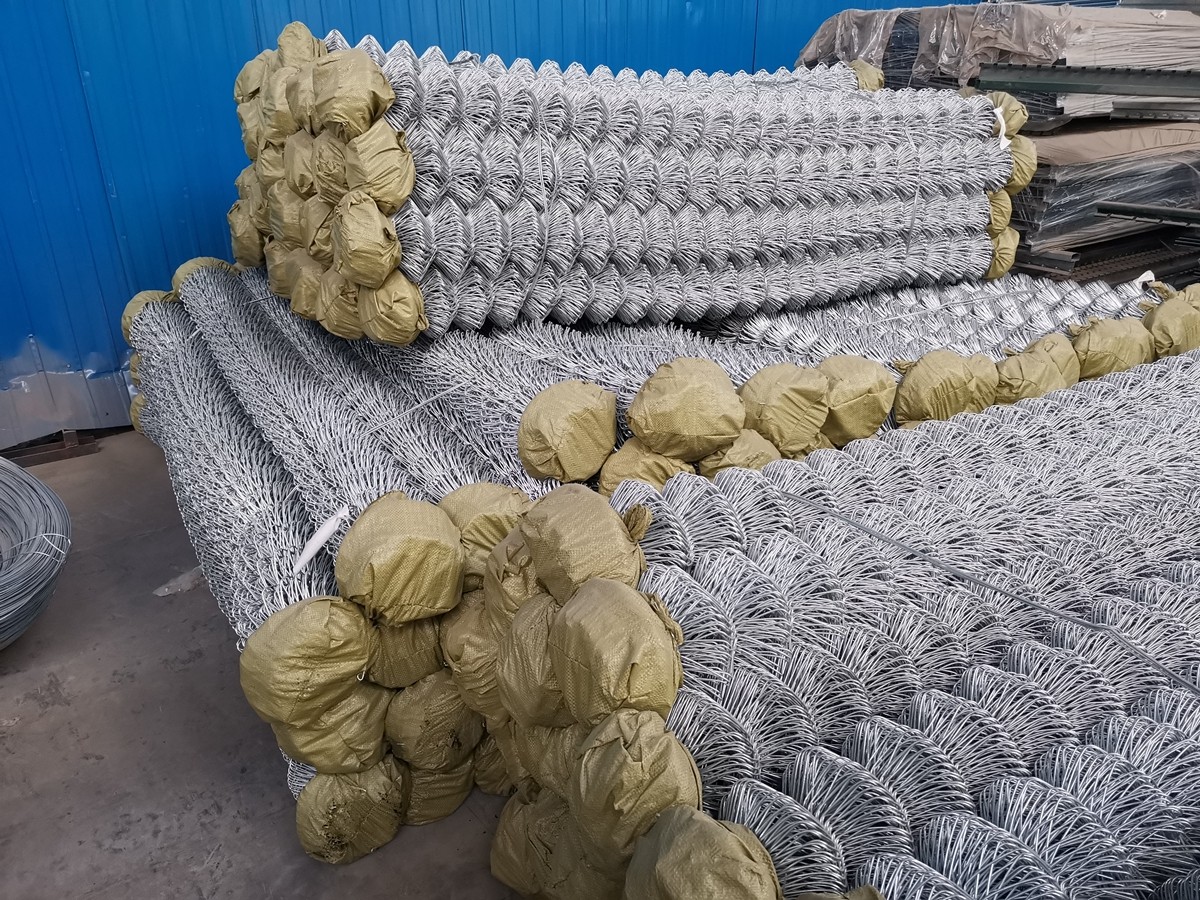

Roll length: 10m, 20m, 30m (customizable)

Edge finish: Twisted edge (standard) or folded edge (cut-resistant; frequently specified by customers)

Product specification

✅ Key Advantages

1. Good elasticity and impact resistance: No welded joints mean the mesh won't fail at connection points upon impact (unlike welded wire mesh), and it can spring back after external compression.

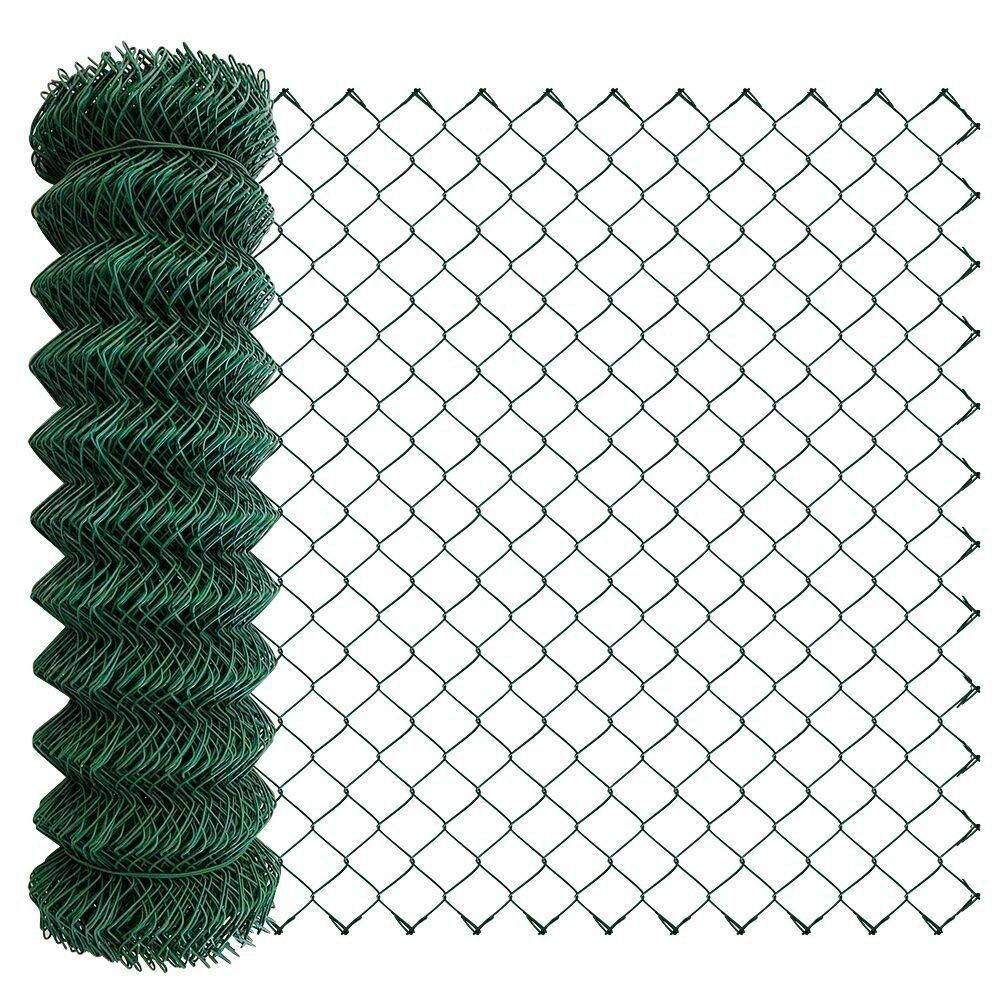

2. Corrosion-resistant and durable: Hot-dip galvanized versions last over 15 years outdoors; PVC-coated options offer dual-layer corrosion protection and an attractive appearance, making them ideal for gardens and residential communities.

3. Easy transport and installation: Supplied in rolls for compact storage; easy to cut and join on-site, allowing for rapid fence assembly when paired with galvanized square-tube posts.

4. Cost-effective: Significantly cheaper than stainless steel; the open mesh design offers low wind resistance, making it less likely to be damaged in high-wind areas.

5. Safety-conscious design: Folded-edge versions eliminate sharp wire ends, making them the preferred choice for sports courts and zoos.

Limitations: Lower theft resistance compared to expanded metal mesh; thick-wire/large-aperture mesh offers superior security, while thin-wire/small-aperture mesh is better suited for animal enclosures.
